Smart Optics

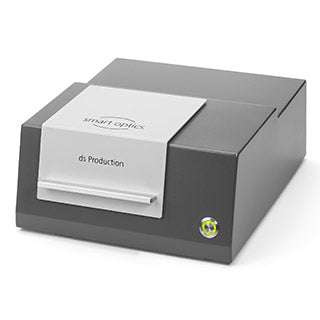

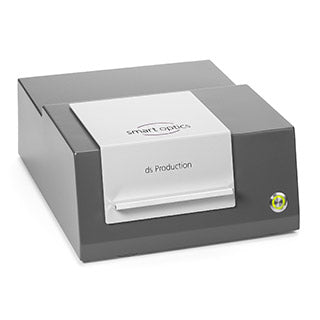

Ds Production
$8,331.00
Title
$8,331.00
The ds Production is characterized by a robust metal housing and the use of high-quality optical and mechanical components. This makes it particularly suitable for continuous use under production conditions.
As the ideal companion for every production chain, the ds Production scores with its precision and short scanning time. The ds Production easily handles large processing quantities and is therefore predestined for continuous use.

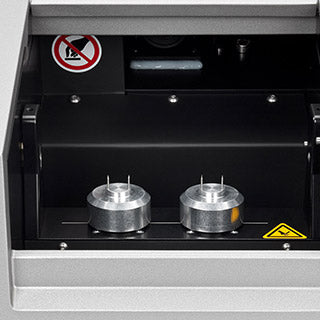

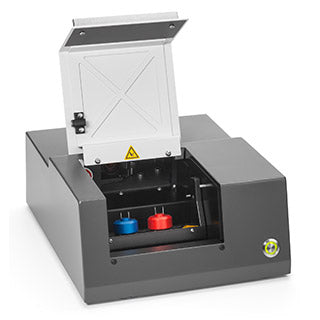

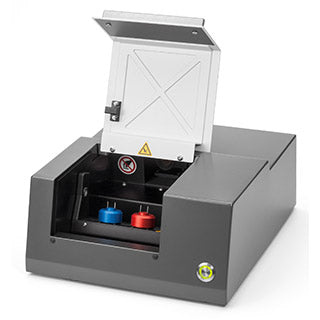

Two additional color-coded object holders are included for a quick change of the ear impressions.
Our audiology products mono Scan, duo Scan, free Stage and ds Production are 3D scanners for the digitization of ear impressions, precisely tailored to your specific needs. As a HIMSA member company, smart optics equips all scanners with a Noah interface as a matter of course, allowing the scanners’ software to be integrated into your Noah system.
ds Production | |
---|---|
Size (W x H x D) | 300 x 340 x 155 mm |
Weight | 10 kg |
Connections | USB Power |
Power supply | 100 - 240 VAC, 50/60 Hz |
Housing | Steel sheet DC01 (1.0330) |
Lid | |
On/Off switch | Pressure switch, green LED, front |
Warranty | 36 months |
Extended warranty | 12 months |
ds Production | |
---|---|
Accuracy (acc. ISO 12836) | < 9 µm |
Scan time (*) | 16 seconds |
Number of impressions simultaneously | 2 |
Measuring technology | Stripe light triangulation |
Light source | White light LED |
Resolution of scan quality | adjustable |
Output data format | PLY, STL, ASCII, MSH |
ds Production | |
---|---|
Capacitive touch sensor | - |
Status LED | - |
Open scanning | - |
Color texture scan | ✔ |
Quick start function | ✔ |
Annotating and commenting | ✔ |
Various naming methods | ✔ |
Barcode naming (*) | ✔ |
3D calibration (*) | ✔ |
Project export incl. FTP upload (**) | ✔ |
** When using aural Scan 3.2 or earlier, FTP upload is a paid module.
ds Production | |
---|---|
Scan software | aural Scan |
System requirements (Minimum) | Windows 10 64-Bit Dual Core CPU, i3 4 GB RAM USB 2.0 Port approx. 40 GB free hard-disk space Graphics card with 1 GB RAM |
System requirements (Recommended) | Windows 10 64-Bit Quad Core CPU, i5 8 GB RAM USB 3.0 Port approx. 80 GB free hard-disk space Graphics card with 2 GB RAM |
Compatibility with Noah System | ✔ |
Compatibility with winIPRO | ✔ |
