Smart Optics
duo Scan
$6,192.00
Title
$6,192.00
duo Scan

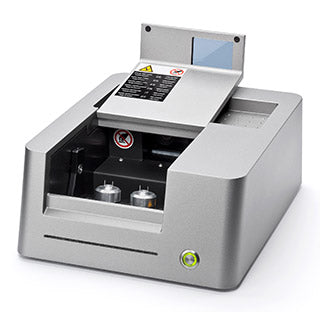

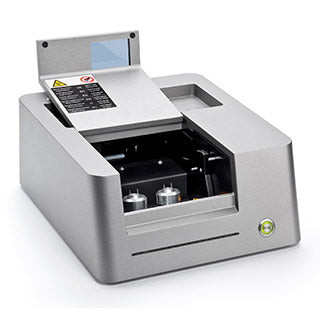

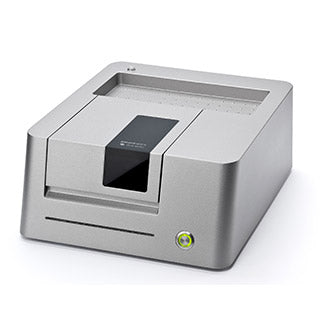

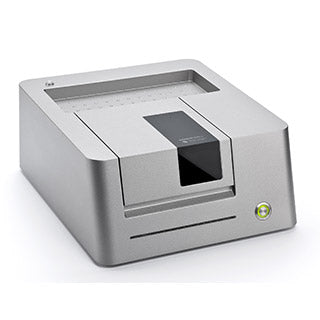

The duo Scan is a 3D scanner for digitizing ear impressions and was designed for daily use in doctors’ offices, shops and production. The compact, powerful scanner can be added seamlessly to any workstation. Its unobtrusive design and the pleasant operating sound level are an advantage when set up inside the shop.
The short scanning time ensures a high daily throughput.
Our audiology products mono Scan, duo Scan, free Stage and ds Production are 3D scanners for the digitization of ear impressions, precisely tailored to your specific needs. As a HIMSA member company, smart optics equips all scanners with a Noah interface as a matter of course, allowing the scanners’ software to be integrated into your Noah system.
Datasheet
duo Scan | |
---|---|
Size (W x H x D) | 300 x 340 x 135 mm |
Weight | 8 kg |
Connections | USB Power |
Power supply | 100 - 240 VAC, 50/60 Hz |
Housing | PUR integral rigid foam |
Lid | |
On/Off switch | Pressure switch, green LED, front |
Warranty | 36 months |
Extended warranty | 12 months |
duo Scan | |
---|---|
Accuracy (acc. ISO 12836) | < 9 µm |
Scan time (*) | 18 seconds |

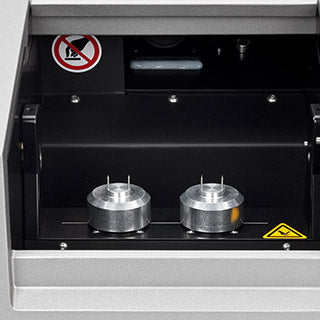

Number of impressions simultaneously | 2 |
Measuring technology | Stripe light triangulation |
Light source | White light LED |
Resolution of scan quality | adjustable |
Output data format | PLY, STL, ASCII, MSH |
duo Scan | |
---|---|
Capacitive touch sensor | |
Status LED | |
Open scanning | |
Color texture scan | |
Quick start function | |
Annotating and commenting | |
Various naming methods | |
Barcode naming (*) | |
3D calibration (*) | |
Project export incl. FTP upload (**) |
duo Scan | |
---|---|
Scan software | aural Scan |
System requirements (Minimum) | Windows 10 64-Bit Dual Core CPU, i3 4 GB RAM USB 2.0 Port approx. 40 GB free hard-disk space Graphics card with 1 GB RAM |
System requirements (Recommended) | Windows 10 64-Bit Quad Core CPU, i5 8 GB RAM USB 3.0 Port approx. 80 GB free hard-disk space Graphics card with 2 GB RAM |
Compatibility with Noah System | |
Compatibility with winIPRO |
